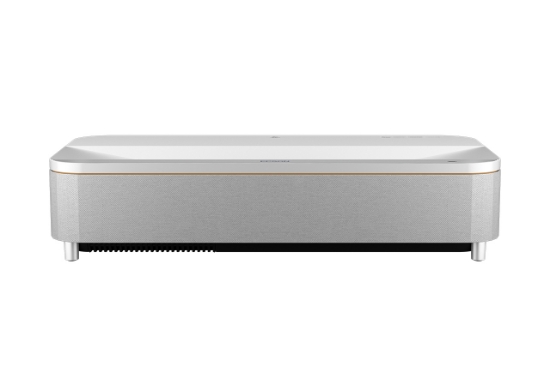

The EH-QS100W delivers high-performance 4K PRO-UHD quality with super-short-throw capabilities, providing large, sharp images, even in compact spaces. Its 4,500 lumens ensures stunning vibrancy, in both bright and dark environments, making it perfect for an immersive entertainment experience, while its wide range of IP controls ensure easy integration into smart homes.
Products specifications
| Features | |
| Interactive | No |
| Noise level (economic mode) | 20 dB |
| Noise level | 34 dB |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| Weight & dimensions | |
| Width | 695 mm |
| Depth | 341 mm |
| Height | 156 mm |
| Weight | 12 kg |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Power | |
| Power source | AC |
| Power consumption (typical) | 333 W |
| Power consumption (PowerSave) | 0.4 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| Ports & interfaces | |
| Service port type | USB Type-B |
| USB 2.0 Type-A ports quantity | 2 |
| HDMI ports quantity | 2 |
| DVI port | No |
| Network | |
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | No |
| Design | |
| Market positioning | Home cinema |
| Product type | Short throw projector |
| Product colour | White |
| Placement | Desktop, TV cabinet, Wall |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Display | |
| Built-in display | No |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |
| Storage | |
| Card reader integrated | No |
| Lens system | |
| Focus | Manual |
| Fixed focal length | 2.3 mm |
| F-number (relative aperture) | 1.8 |
| Zoom capability | Yes |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.16 - 0.22:1 |
| Projector | |
| Smart projector | No |
| Screen size compatibility | 1524 - 4064 mm (60 - 160") |
| Projector brightness | 4500 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 5000000:1 |
| Native aspect ratio | 16:9 |
| Number of colours | 1.07 billion colours |
| Matrix size | 1.57 cm (0.62") |
| Heat dissipation | 1132.2 BTU/h |
| Light source | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Video | |
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Video colour modes | Cinema, Dynamic, Natural, Vivid |
*
*
*
